Product Overview:

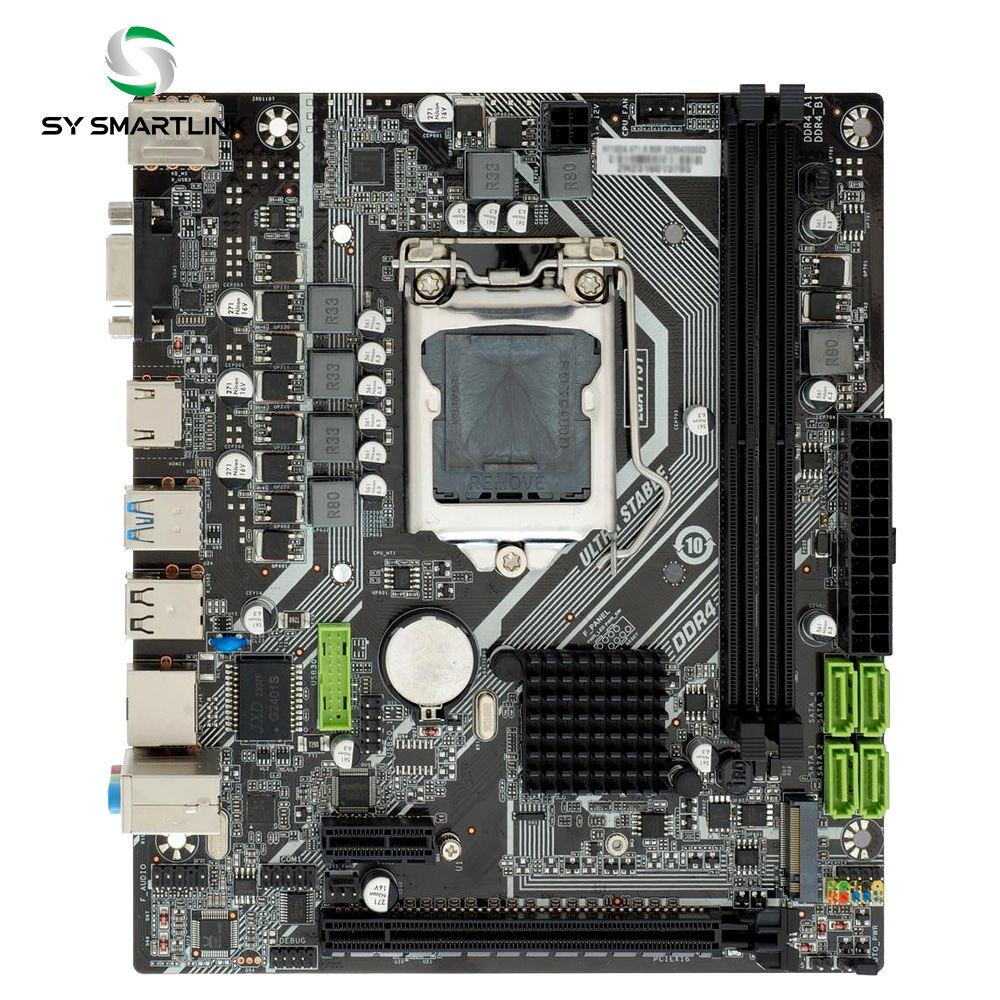

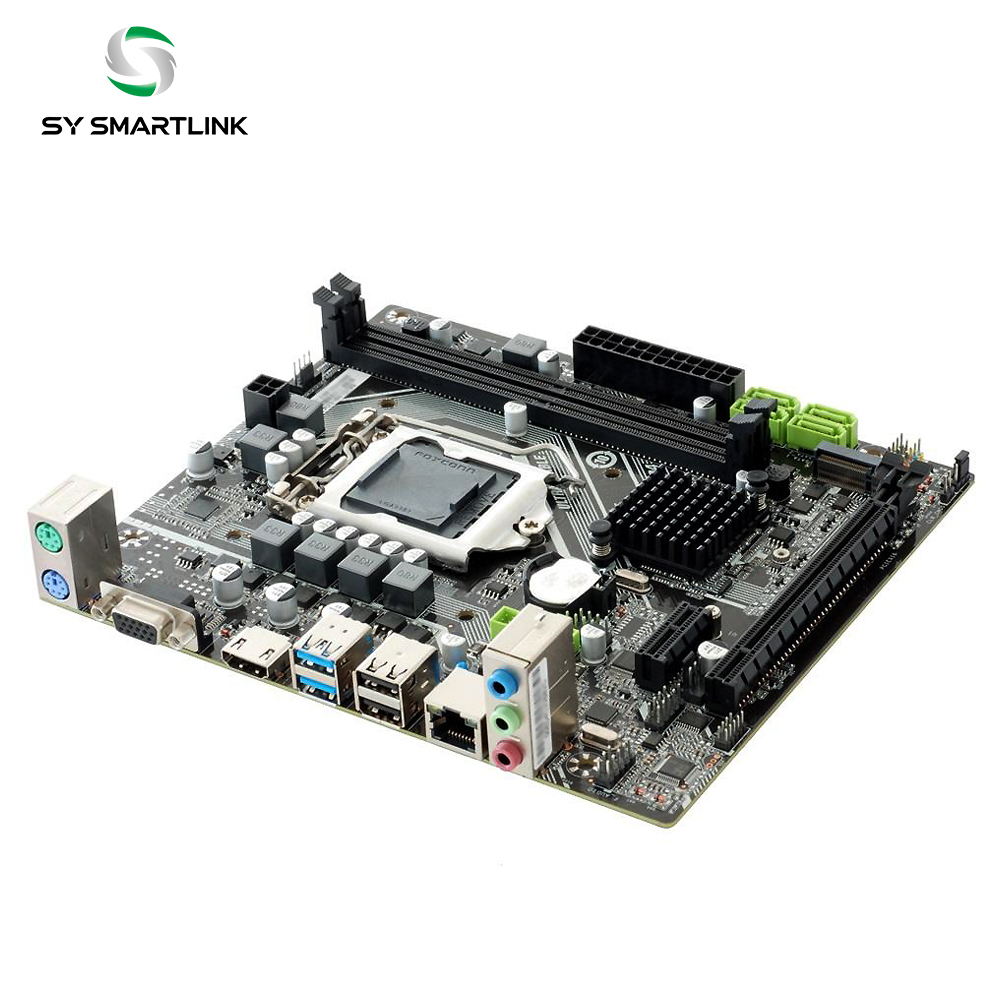

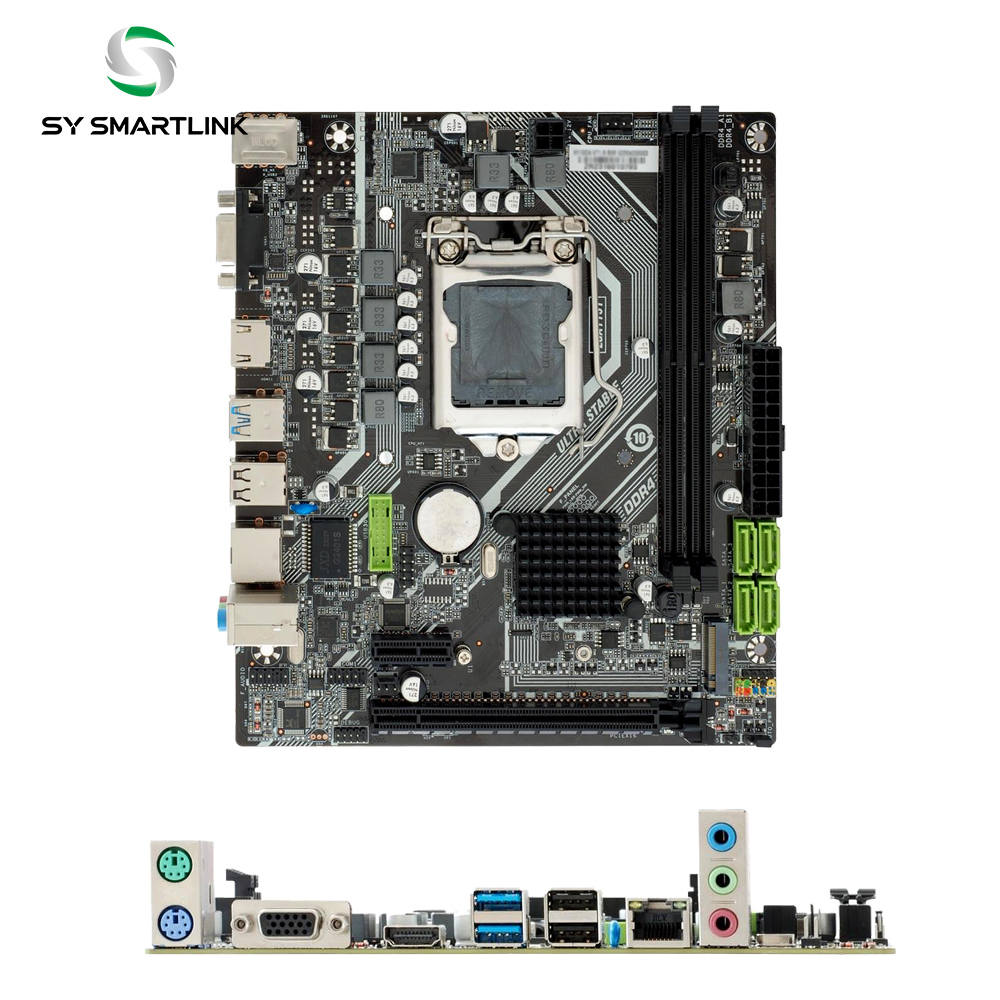

The H110DA V7.1 is a highly reliable, commercial-grade Micro-ATX H110 Motherboard engineered with the Intel® H110 chipset. Designed for enterprise desktops, industrial control, and specialized hardware terminals, it delivers exceptional system stability. With broad compatibility across Intel® 6th to 9th Gen processors and next-gen M.2 NVMe storage support, it stands as the ideal hardware backbone for global system integrators and bulk wholesale buyers.
Technical Specifications:
| Category | Specifications |
|---|---|
| Model | H110DA V7.1 |
| Chipset | Intel® H110 Express Chipset |
| CPU Support | LGA1151 Slot, supports 6th/7th/8th/9th Gen Intel® Core™ i3/i5/i7/i9, Pentium, and Celeron processors |
| Memory | 2× DDR4 UDIMM Slots (Supports 1866/2133/2400/2666MHz), Max expansion up to 64GB |
| Display Outputs | 1× VGA Port + 1× HDMI Port (Supports independent dual displays) |
| Storage Interfaces | 4× SATA 3.0 (6Gb/s) Ports + 1× M.2 NVMe Slot (Supports 2242/2280 PCIe x4 SSD) |
| Network | 1× Realtek RTL8111H 10/100/1000Mbps Ethernet (Optional: RTL8105E), supports Wake On LAN |
| Audio | 1× Realtek ALC897 High Fidelity Audio Controller (Optional: ALC897) |
| Expansion Slots | 1× PCI Express X16 Gen 3.0 Slot + 1× PCI Express X1 Gen 2.0 Slot |

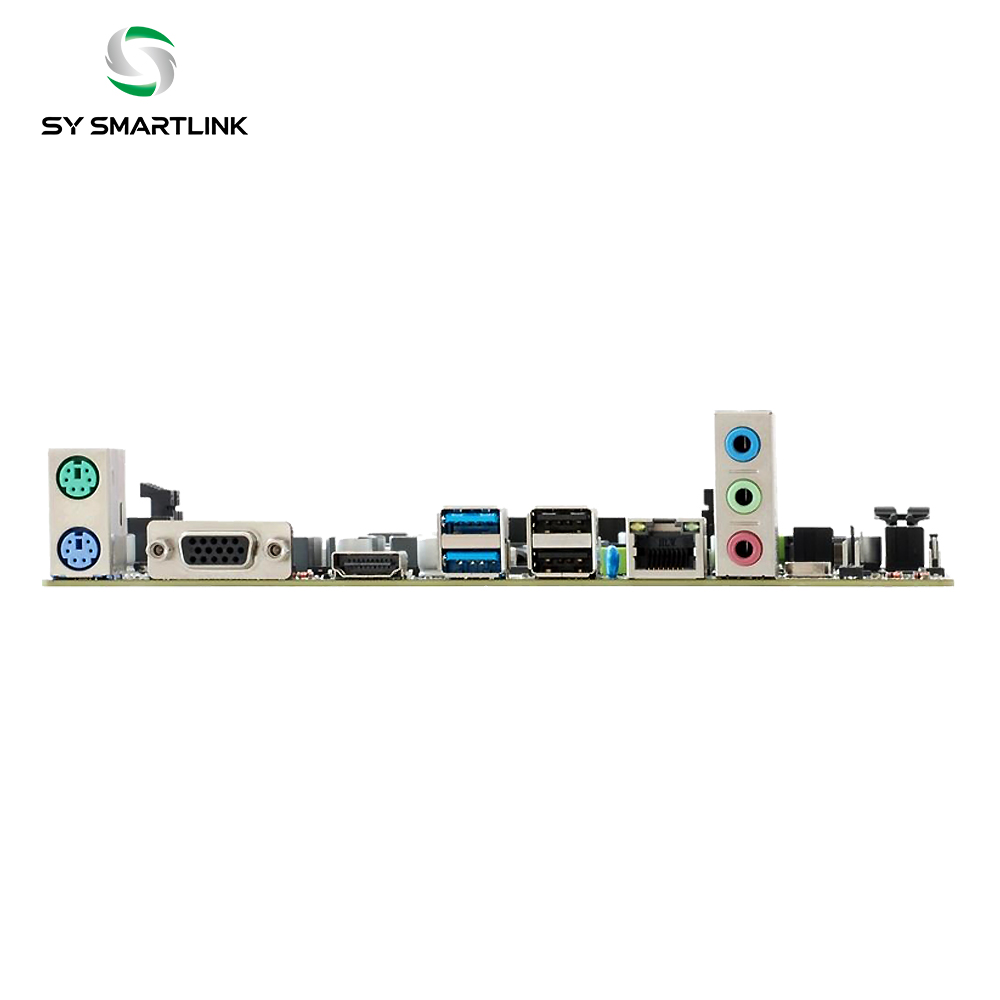

| Rear I/O Ports | 2× USB 3.2 Gen1x1 Type-A, 2× USB 2.0, 1× VGA, 1× HDMI, 1× RJ45 Network Port, 3× Audio Jacks |
| Internal Connectors | 1× COM Connector (Reserved for industrial devices), 1× DEBUG Connector, 1× USB 3.0 Connector, 2× USB 2.0 Connectors |
| Form Factor | Micro-ATX Form Factor (190mm × 230mm) with 6 mounting holes |
| OS Support | Certified for Windows® 11, Windows® 10, Windows® 7 |
Key Features:
- Massive CPU Compatibility: Versatile architecture supporting a huge range of LGA1151 processors from 6th Gen all the way up to 9th Gen Intel Core chips, drastically reducing your inventory sourcing complexity.
- Dual Channel DDR4 Up to 64GB: Outfitted with 2 high-speed DDR4 UDIMM slots to guarantee fast system responsiveness and robust multitasking capabilities for corporate computing.
- Blazing-Fast Storage Options: Integrates 4 standard SATA 3.0 ports along with a dedicated high-speed M.2 NVMe PCIe x4 slot, providing flexible configurations for high-speed boot drives.
- Rich Commercial Interfaces: Specially reserved internal COM/RS232 pin header and DEBUG port, making this H110 Motherboard perfectly adapted for POS terminals, industrial automation, and kiosk integration.
B2B Supply & Customization Services (OEM/ODM):
- Custom BIOS & Boot Logo: Tailored BIOS engineering to inject custom boot logos, modify default power-on states (AUTO_PWR enabled), or restrict specific peripheral boots.
- PCB Customization & Hardware Tweaks: Flexible volume options to adjust specific interfaces, including component placement swaps or alternate network controller options (RTL8111H or RTL8105E).
- Industrial Bulk Packaging: Safe anti-static bag packaging, customized wholesale cartons, or bulk neutral packing boxes to minimize global ocean shipping costs.
Target Applications:
- Industrial Automation & POS: Perfect engine for cash registers, vending machines, manufacturing production control nodes, and data loggers through its native COM support.
- Enterprise Office Desktop Deployment: Standardized hardware component for building large-scale, highly cost-effective corporate computer fleets.
- IoT & Embedded Terminals: Reliable motherboard core for digital signage media players, ATM enclosures, security surveillance stations, and medical kiosks.
